AR530M

MF/HF multichannel basestation receiver with VoIP ED137/C interface

Contact us to get brochure
FEATURE HIGHLIGHTS
  • ■
    Frequency Range: 0.1 .. 45MHz
  • ■
    Processing bandwidth: 32MHz
  • ■
    Channels: 1 .. 10 simultaneous channels / radio slices
  • ■
    Demodulations: AM, FM, LSB, USB, CW, AMS
  • ■
    VoIP (AUROCAE ED-137/B,C)
  • ■
    Decoders: DSC (GMDSS), NAVTEX, NBDP
  • ■
    Spectrum Analyzer
  • ■
    SNMP (Traps and Mibs e.g.ATC-GRS-MIB ED-137/5C)
  • ■
    Fulband RF recording with post-demodulation capability
  • ■
    WebUI, TCP and WAMP remote control
HARDWARE
  • ■
    Hi-End SDR receiver
  • ■
    19" rack-mount 2U or desktop housing
  • ■
    Local control panel to setup basic parameters
  • ■
    Local audio monitoring loudspeaker with volume controll
  • ■
    1GB Ethernet, redundant
  • ■
    600Ohm analogue line outputs with SQU signaling
  • ■
    Power Supply: 9-32VDC, redundant
  • ■
    Consumption: 50W typ., 80W peak
  • ■
    Built-in surge protection and RF limiter
  • ■
    Passive cooling

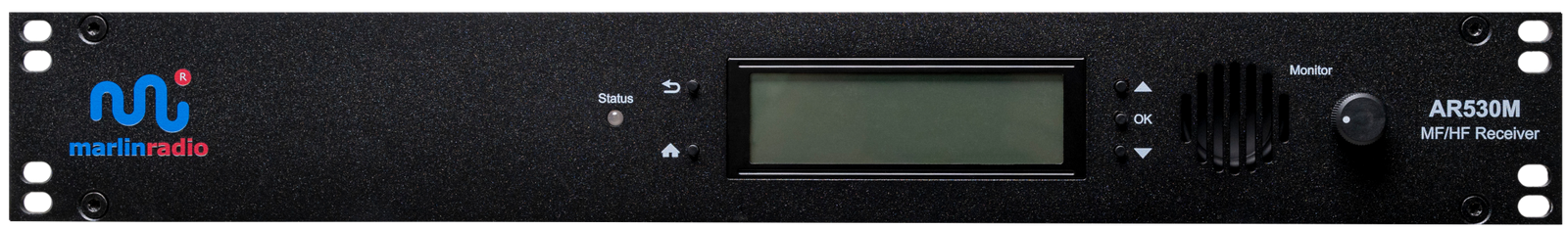

marlinradio AR530M - front view
AR530M - Front view

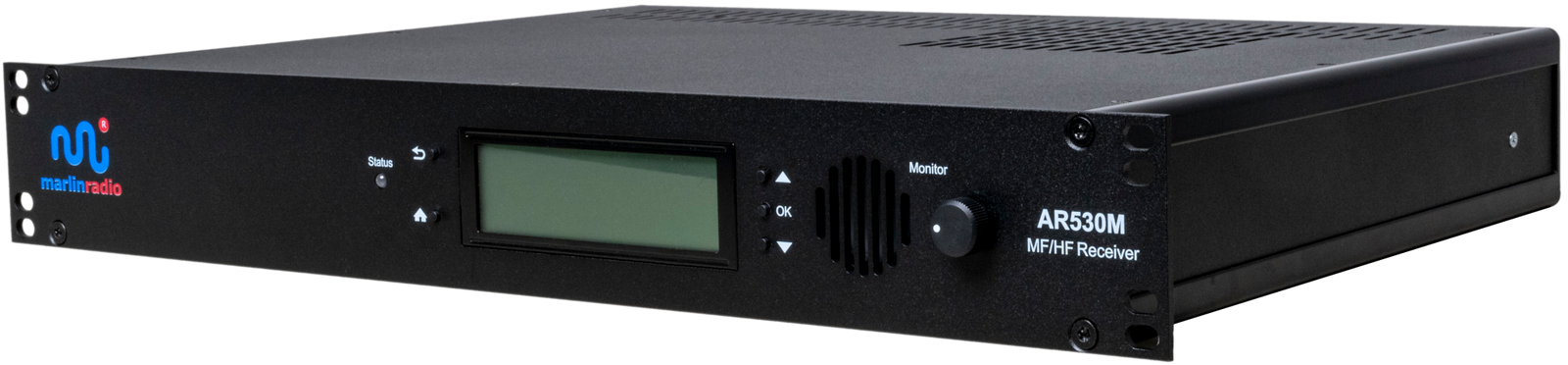

marlinradio AR530M - side view
AR530M - side view

marlinradio AR530M - without display and monitor

AR530M - Front view, without options

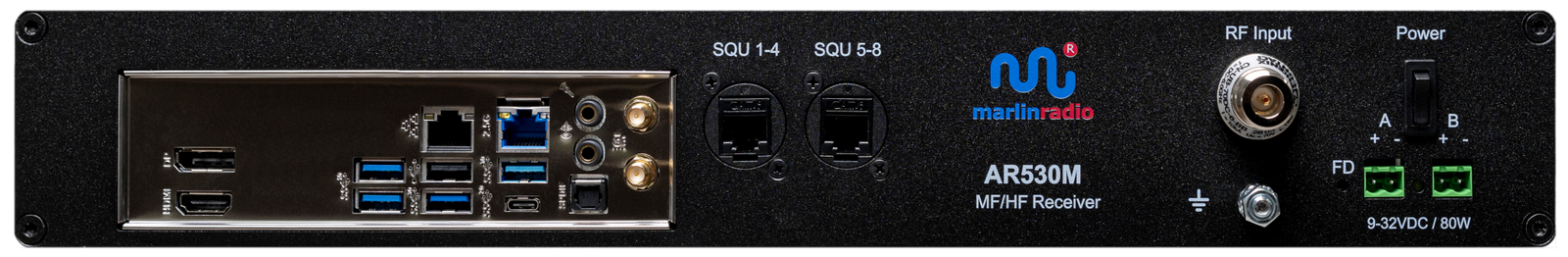

marlinradio AR530M - back view
AR530M - Back view

AR304M
contact us to get brochure

MF/HF multichannel basestation receiver - Simplified version of AR530M

FEATURE HIGHLIGHTS

Identical as AR530M except:

  • ■
  • Processing bandwidth: 4MHz
  • ■
    Channels: 3 simultaneous channels / radio slices
HARDWARE

Identical as AR530M except:

  • ■
  • Simplified SDR receiver
  • ■
    Not expandable
marlinradio AR304M - front view

AR304M - Front view

marlinradio AR304M - side view

AR304M - Side view

marlinradio AR304M - back view

AR304M - Back view
